Shielded Orange battery cable specifically developed for electric vehicle applications, suitable for 600/1000 Volts when used as a voltage carrier. Equipped with extra shielding to prevent EMC appearance, for example when used as an AC motor cable.

High-voltage cabling with an orange colour is one of the rdw’s requirements according to European R100 guidelines. Unlike a lot of battery cable, this cable is also very flexible by using extra thin wires.

  • Conductor material: E-Cu ETP1 according to DIN EN 13602
  • Conductor design: stranded bare coppe
    Screening braid:
  • Tinned copper max. 0.16mm optical covering min. 85 %
  • Foiled shielding: ALU-PET foil Metal side in contact to screen overlap min. 20 %
  • Bend radius:
    – min. 3 x cable diameter for static installation
    – min. 6 x cable diameter for dynamic installation

Dimensions:

  • 10 mm2 – external diameter ∅8.8 mm
  • 16 mm2 – external diameter ∅10.2 mm
  • 35 mm2 – external diameter ∅14.4 mm
  • 50 mm2 – external diameter ∅15.8 mm
  • 70 mm2 – external diameter ∅18.2 mm

Price per metre

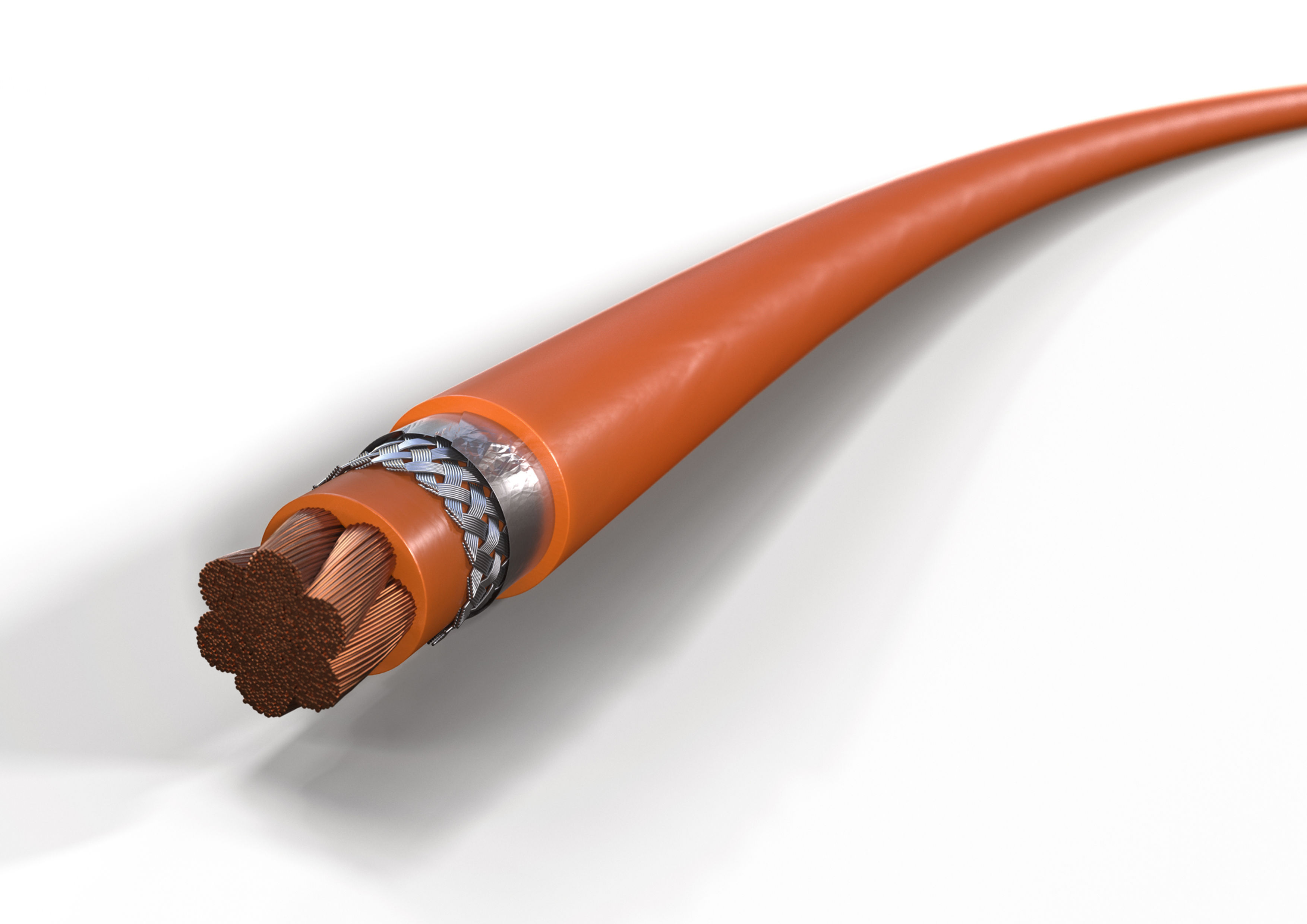

Hew Kabel 35mm Shielded High Voltage cable (orange)
